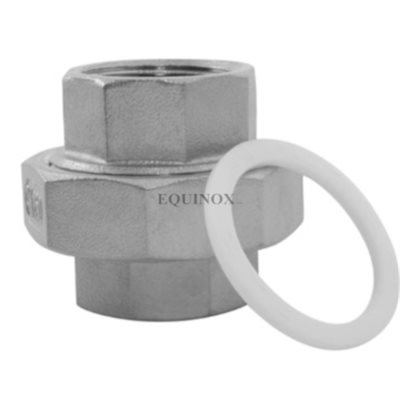

Union flat face PTFE - NPT #150 SS316
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Union flat face PTFE - NPT #150 SS316

Product Code: 1TUNFL1C6050

SIZE A  B C PRESSURE STEAM PRESSURE
1/2'' 1/2'' NPT(F) 1.94'' 0.59'' 300 PSI @ 72 °F 150 PSI @ 350 °F
3/4'' 3/4'' NPT(F) 1.94'' 0.63'' 300 PSI @ 72 °F 150 PSI @ 350 °F
1'' 1'' NPT(F) 2.37'' 0.71'' 300 PSI @ 72 °F 150 PSI @ 350 °F
1 1/2'' 1 1/2'' NPT(F) 3'' 0.87'' 300 PSI @ 72 °F 150 PSI @ 350 °F
2'' 2'' NPT(F) 3.13'' 0.98'' 300 PSI @ 72 °F 150 PSI @ 350 °F
3'' 3'' NPT(F) 4.13'' 1.14'' 300 PSI @ 72 °F 150 PSI @ 350 °F
Code Size
1TUNFL1C6050 1/2"
1TUNFL1C6075 3/4''
1TUNFL1C6100 1"
1TUNFL1C6150 1 1/2"
1TUNFL1C6200 2"
1TUNFL1C6300 3"
